BENTLY NEVADA

ELECTRIC TEST KIT

OFFICIAL · 178087 Rev. G

TK3

TK3-2E 14700-01

Electric Proximity System Test Kit

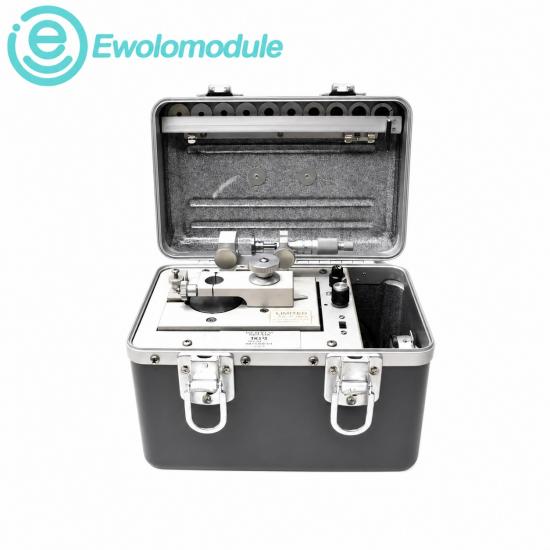

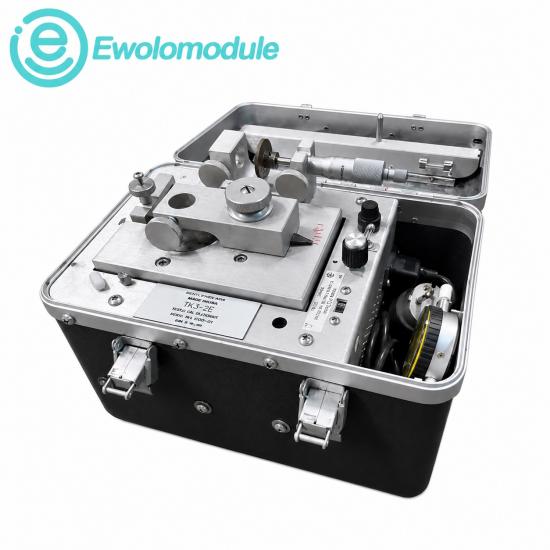

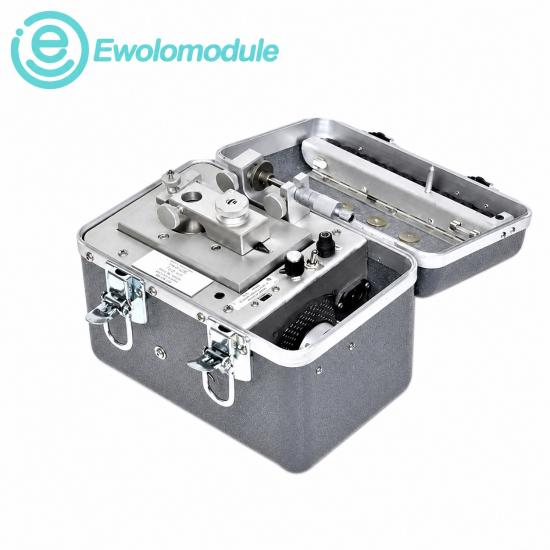

Bently Nevada TK3-2E 14700-01 is an electric proximity system test kit for simulating shaft vibration and position during calibration checks.

CONDITIONNew Original

WARRANTYOne year

IN STOCK1 unit

PRODUCT SERIESTK3

ENGINEERING PROFILE

Electric reference motion for calibration checks

The electric TK3 test kit generates controlled mechanical vibration with a motor-driven wobble plate and uses a spindle micrometer for proximity transducer and position monitor checks.

OFFICIAL ORDERING STRUCTURE · TK3-2E · 14700-01

TK3-2EElectric test kit

14700-01Part number

Electric driveMotor-driven wobble plate simulation.

Position checksMicrometer assembly verifies probe response.

Known referenceReference motion supports monitor comparison.

OFFICIAL TECHNICAL DATA

Manufacturer

Bently Nevada

Product family

TK3 Proximity System Test Kit

Electric power

95–125 or 190–250VAC, 50/60Hz

Vibration amplitude

50µm to 254µm peak-to-peak

Maximum speed

0 to 5,000cpm ±1,000cpm

Micrometer range

0 to 25.4mm

Target material

AISI 4140 alloy steel

Operating temperature

0°C to 50°C

Environmental exposure

IP54 when closed

Official function

Simulates shaft vibration and position for calibration

03A · APPLICATION ROUTEElectric Test Kit application map

Monitor serviceVerify vibration monitor response

Probe systemsCheck proximity transducer output

Field calibrationApply known mechanical motion

TrainingDemonstrate vibration measurement
