BENTLY NEVADA

PROXIMITY SYSTEM TEST KIT

OFFICIAL · 178087 Rev. G

TK3

TK3-2 141580-01

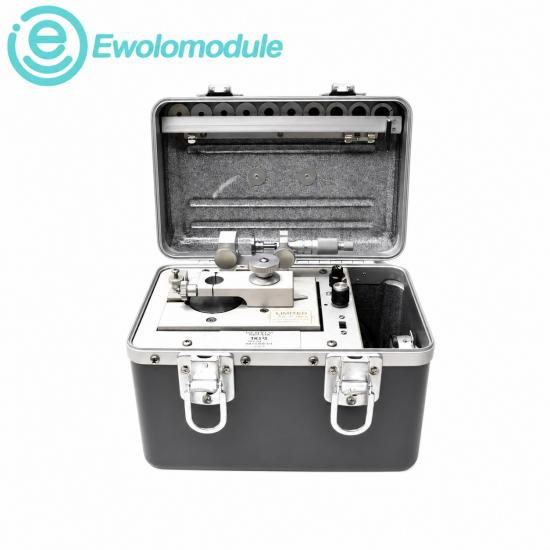

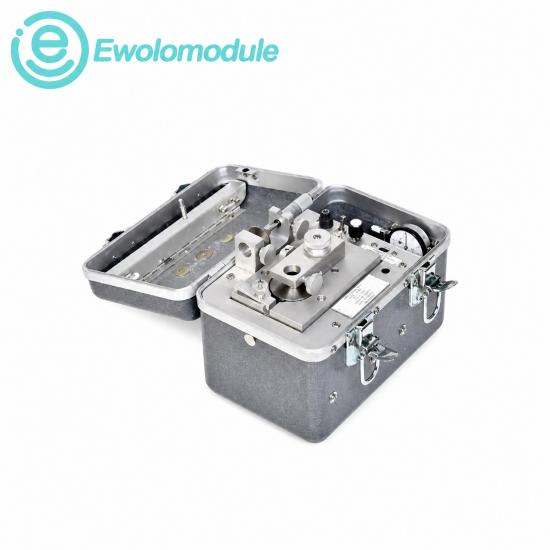

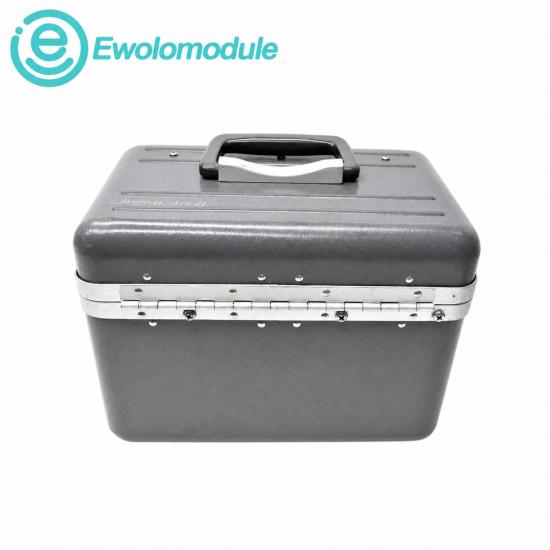

Proximity System Test Kit

Bently Nevada TK3-2 141580-01 is a proximity system test kit used to simulate shaft vibration and position for monitor and transducer verification.

CONDITIONNew Original

WARRANTYOne year

IN STOCK1 unit

PRODUCT SERIESTK3

ENGINEERING PROFILE

Field simulation for proximity system verification

The TK3 family uses a spindle micrometer and wobble plate to simulate shaft position and vibration, supporting verification of proximity transducer systems and monitor readouts.

OFFICIAL ORDERING STRUCTURE · TK3-2 · 141580-01

TK3-2Test kit family

141580-01Part number

Position simulationSpindle micrometer checks system calibration.

Vibration simulationWobble plate produces a known mechanical input.

Monitor verificationCompares monitor readings with reference motion.

OFFICIAL TECHNICAL DATA

Manufacturer

Bently Nevada

Product family

TK3 Proximity System Test Kit

Vibration amplitude

50µm to 254µm peak-to-peak

Maximum speed

0 to 5,000cpm ±1,000cpm

Micrometer range

0 to 25.4mm

Target material

AISI 4140 alloy steel

Operating temperature

0°C to 50°C

Storage temperature

-18°C to 65°C

Environmental exposure

IP54 when closed

Official function

Simulates shaft vibration and position for calibration

03A · APPLICATION ROUTEProximity System Test Kit application map

Monitor serviceVerify proximity monitor readouts

Probe systemsCheck transducer scale factor

WorkshopsSupport calibration procedures

TrainingDemonstrate shaft motion signals
