Product Overview

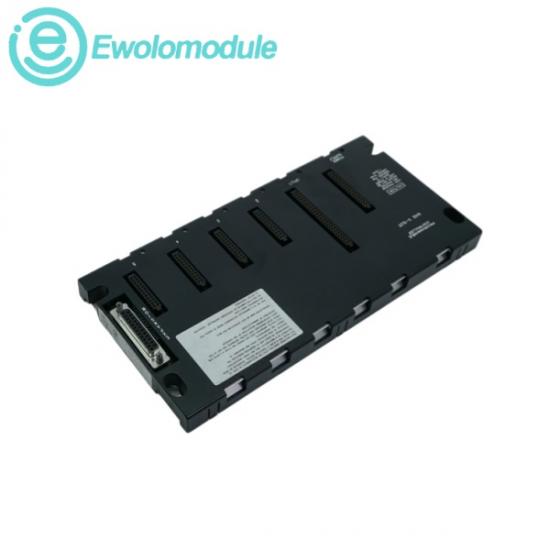

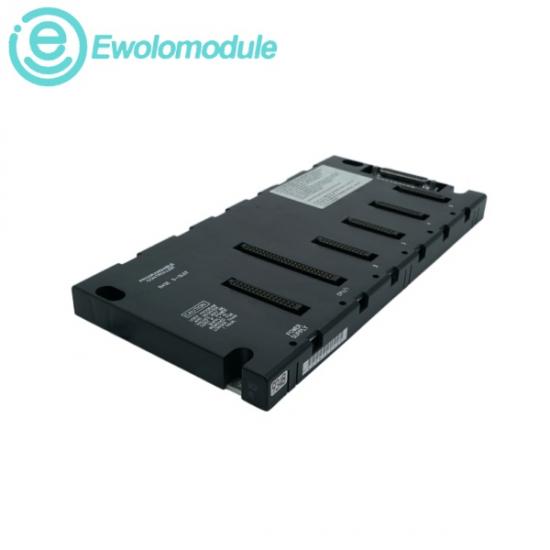

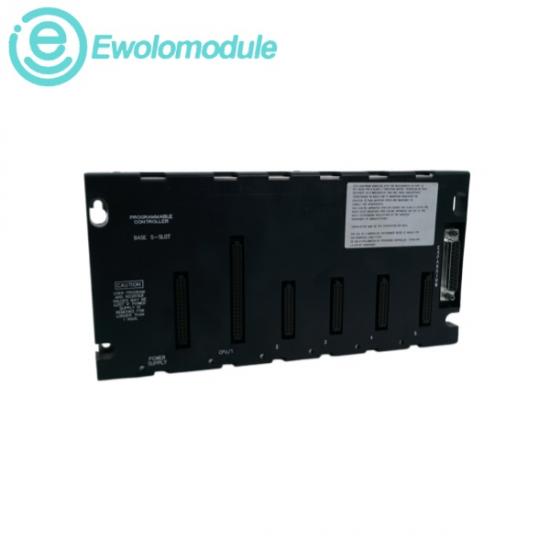

The GE IC693CHS397 is a 5-slot modular CPU baseplate that serves as the foundational backplane for a Series 90-30 PLC system. It features a unique, unnumbered left slot dedicated strictly to housing the system power supply module, followed by an adjacent Slot 1 labeled "CPU/1" specifically engineered to support the central processing unit or advanced option modules. Slots 2 through 5 provide standard backplane bus connections for discrete, analog, or specialized option I/O modules, while an integrated 25-pin D-type female expansion connector on the right end enables extended multi-rack connectivity.

(1) Number of Slots: 5 slots for I/O and Option modules

(2) Backplane Power Supply: Distributes +5V DC and +24V DC logic/isolated power

(3) Expansion Interface: Integrated 25-pin D-type female connector

(4) Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)

(5) Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)

Industrial Applications

(1) Central Controller Framework: Hosting the main CPU and power supply to initiate the primary program scan logic loop.

(2) Local I/O Hardware Consolidation: Grouping local digital and analog I/O modules together on a single rack space.

(3) Control Panel Compact Integration: Fitting into tight electrical enclosures requiring a space-saving 5-slot small footprint layout.

(4) System Expansion: Acting as the main rack in a multi-rack system, supporting expansion and remote baseplates to extend I/O capabilities over distances.

Application Industry

1. Power industry, the elevator industry, parking lot, automobile, automobile supporting.

2. Feed industry, aluminum smelting machinery, refrigeration industry.

3. Iron and steel industry, combustion control system, non-ferrous metal smelting.

4. Glass industry, engineering machinery, textile machinery, water treatment.
