PRODUCT DETAILS

SIEMENS

ARTICLE NUMBER

3UF5011-3AN00-1

Warranty: One year • Availability: In stock

OFFICIAL PRODUCT NAME

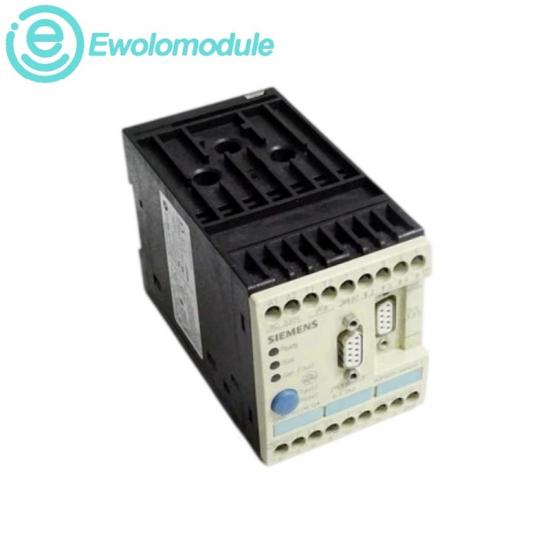

SIMOCODE-DP 3UF50 Basic Unit for Motor Management

Series: SIMOCODE-DP / 3UF50
Description: PROFIBUS-DP motor-management basic unit with integrated protection, control inputs and relay outputs for motor feeders.

RELATED MODELS ON EWOLOMODULE
6GK1161-6AA01 6SL3210-1PE22-7AL0 6ES7313-5BF03-0AB0

SPECIFICATIONS / OFFICIAL ENGINEERING DATA

Motor Management Basic Unit engineering profile

The 3UF50 basic unit combines motor-current monitoring, protection, control logic and PROFIBUS-DP communication in one device for intelligent low-voltage motor feeders.

OFFICIAL TECHNICAL DATA

Article number

3UF5011-3AN00-1

Basic unit

3UF50

Current range

6.3 to 25 A

Control supply

230 V AC

Fieldbus

PROFIBUS-DP

Bus connector

9-pole SUB-D

Digital inputs

4 optocoupler inputs

Relay outputs

System interface

RS 232 included

Reset functions

Manual, automatic or remote

DIAGNOSTIC PROTECTION

Ready, Bus and General Fault LEDs indicate operating state, while thermistor or summation-current-transformer input options support motor thermal and earth-fault protection. Test and reset functions are available locally and remotely.

PERFORMANCE EFFICIENCY

Motor protection, four control inputs, four relay outputs and PROFIBUS-DP communication are combined in one basic unit, reducing separate feeder-control components.

RECOMMAND

INSTALLATION & UPGRADE

Mount the unit in the motor-control assembly, route the monitored motor conductors as specified, connect the 230 V AC control supply and PROFIBUS-DP cable, then parameterize the feeder functions.

APPLICATION SCENARIOS

Used in intelligent motor feeders for pumps, fans, conveyors, compressors and process auxiliaries requiring centralized control and condition feedback.
