PRODUCT DETAILS

6AU1435-2AD00-0AA0

SIMOTION D435-2 DP/PN Drive-Based Control Unit

PRODUCT IDENTITY

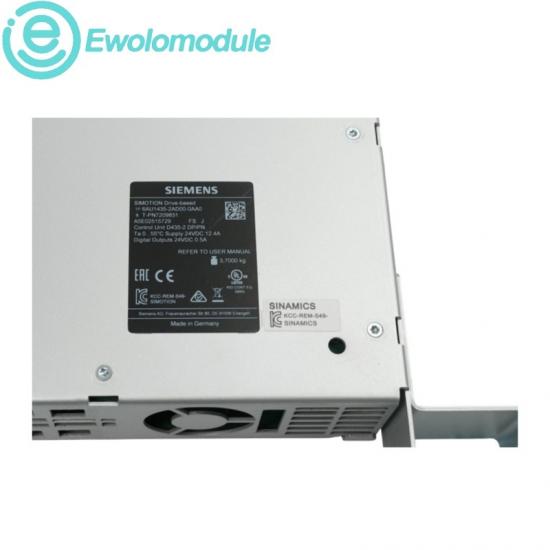

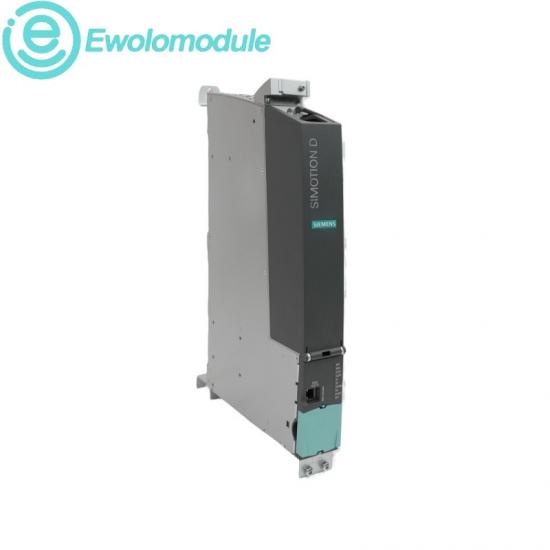

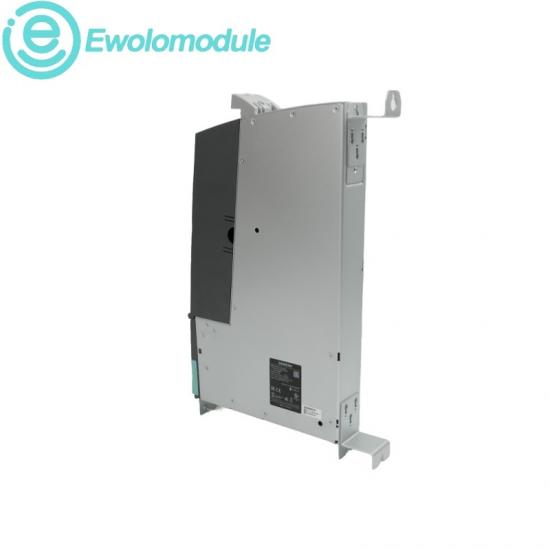

Siemens 6AU1435-2AD00-0AA0 SIMOTION D435-2 DP/PN Drive-Based Control Unit

A standard-performance programmable motion controller with integrated SINAMICS functions, 32-axis capability and PROFIBUS, PROFINET and DRIVE-CLiQ interfaces.

CONDITIONNew Original

WARRANTYOne year

AVAILABILITYIn stock

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Standards, system fit and core data

CERTIFICATIONS & STANDARDS

◆CE conformity applies to the SIMOTION D4x5-2 control-unit family

◆UL / cUL and RCM approvals are documented for supported SIMOTION assemblies

◆Degree of protection IP20 according to EN 60529 / IEC 60529

◆Pollution degree 2 according to EN 60664-1

COMPATIBILITY & INTEROPERABILITY

◆Integrates PLC, motion control and SINAMICS drive control in one unit

◆Six DRIVE-CLiQ interfaces connect SINAMICS drive components

◆Two PROFIBUS and three PROFINET ports support distributed automation

◆Configured with SIMOTION SCOUT / SCOUT TIA and compatible distributed I/O

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION

SIMOTION D435-2 DP/PN

PERFORMANCE CLASS

STANDARD

MAXIMUM AXES

MIN. SERVO CYCLE

0.25 ms

DIGITAL INPUTS

DIGITAL I/O

16 DI/DQ

DRIVE-CLiQ PORTS

PROFIBUS PORTS

PROFINET PORTS

EXTERNAL SUPPLY

24 V DC

RECOMMAND

Firmware, configuration and related models

FIRMWARE UPDATE

CONFIGURATION & PROGRAMMING

◆The CompactFlash card contains the SIMOTION kernel and SINAMICS firmware

◆Create and compile the controller project in SIMOTION SCOUT or SCOUT TIA

◆Back up the project, user data and CF-card contents before an update

◆Download the CPU and integrated drive configuration to the target device

◆Use the documented SIMOTION IT, device-update-tool or CompactFlash update workflow

◆Match technology packages, controller version and SINAMICS device version before commissioning

6AU1435-2AD00-0AA0 Motion Controller

SIMOTION Controller Datasheet
