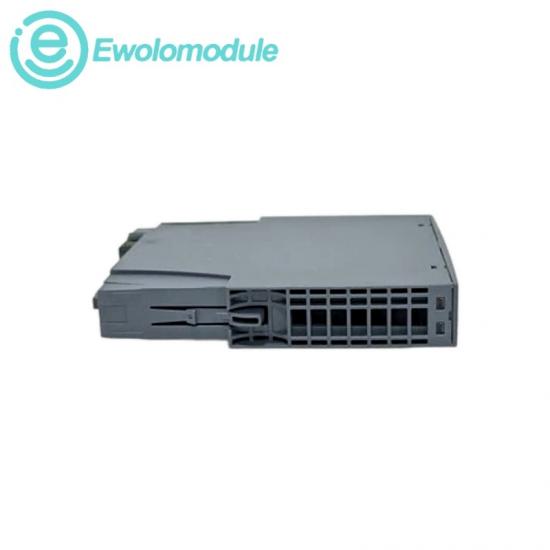

Product Details / Siemens 6DL1136-6AA00-0PH1 SIMATIC ET 200SP HA F-AI 8xI HART Analog Input Module
Brief description Acquires eight fail-safe HART analog signals for high-availability process automation.
Warranty One year	Availability In stock	Related models on Ewolomodule 6ES7351-1AH01-0AE0 6ES7467-5FJ00-0AB0 6ES7315-2EG10-0AB0

Specifications / Fail-safe process I/O

F-AI 8xI HART official engineering profile

This fail-safe analog input module combines eight current-input channels with HART communication and channel diagnostics. It supports safety-related signal acquisition in the high-availability ET 200SP HA I/O platform.

Official technical data

Analog inputs

Signal type

Current, 2-wire / 4-wire

Communication

HART

Resolution

16-bit

Functional safety

Up to SIL 3 per IEC 61508

Performance level

Up to PL e per ISO 13849-1

Terminal blocks

H1 / F1

Color code

CC00

Horizontal operation

-40 °C to +70 °C

Vertical operation

-40 °C to +60 °C

Product positioning

Fail-safe HART analog input module for high-availability distributed process I/O.

Suffix meaning

Siemens identifies this configuration by the complete article number; no official segment-by-segment suffix key is published.

System relationship

Designed for SIMATIC ET 200SP HA stations using the specified terminal block and safety configuration.

Eight fail-safe inputs

HART communication

SIL 3 capability

Recommand / Application and replacement

Where it fits

Chemical plants

Safety-related analog measurement.

Oil and gas

High-availability process signals.

Power generation

Fail-safe field instrumentation.

Installation

Mount on the specified ET 200SP HA terminal block and commission all channels in the safety project.

Upgrade path

Validate safety signatures, HART parameters, terminal assignment and process shutdown planning before exchange.
