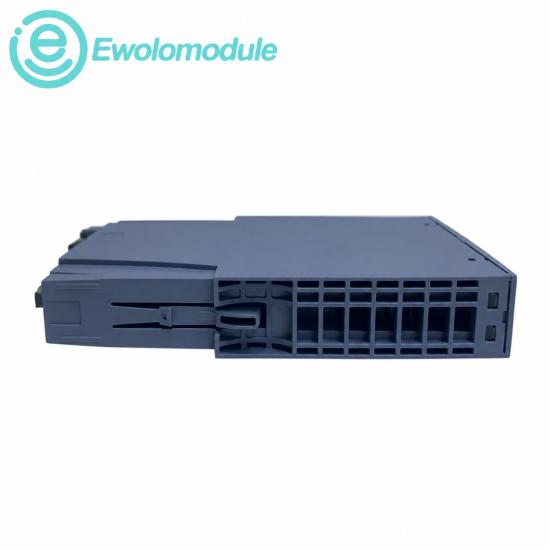

Product Details / Siemens 6DL1165-6TF00-0PH1 SIMATIC ET 200PA SMART+ AQ 8xI HART Analog Output Module
Brief description Provides eight HART-capable analog current outputs for distributed process automation.
Warranty One year	Availability In stock	Related models on Ewolomodule 6ES7351-1AH01-0AE0 6ES7467-5FJ00-0AB0 6ES7315-2EG10-0AB0

Specifications / Process output

AQ 8xI HART official engineering profile

The analog output module delivers current signals to field devices while supporting HART communication and channel-specific diagnostics. Its narrow design suits distributed process I/O stations with dense signal requirements.

Official technical data

Analog outputs

Communication

HART

Output ranges

0–10 mA, 0–20 mA, -20–+20 mA, 4–20 mA

Resolution

15-bit or 16-bit including sign

Maximum load

750 ohms

Maximum inductive load

10 mH

Shielded cable length

Up to 1000 m

Isolation test

1500 V DC / 1 min

Horizontal operation

-40 °C to +70 °C

Vertical operation

-40 °C to +60 °C

Product positioning

High-density HART analog output module for distributed process-control signal stations.

Suffix meaning

Siemens identifies this configuration by the complete article number; no official segment-by-segment suffix key is published.

System relationship

Integrates into the SIMATIC ET 200PA SMART+ station and interfaces with compatible HART field devices.

Eight current outputs

HART communication

Channel diagnostics

Recommand / Application and replacement

Where it fits

Process plants

Current control of field devices.

Water treatment

Distributed analog actuation.

Energy systems

HART-enabled control signals.

Installation

Insert into the matching ET 200PA SMART+ station and wire current loops using shielded cable as specified.

Upgrade path

Preserve terminal assignment, output range, HART configuration and diagnostic behavior when replacing the module.
