PRODUCT DETAILSSIEMENS

ARTICLE NUMBER

6ES5420-4UA14

Warranty: One year • Availability: In stock

OFFICIAL PRODUCT NAME

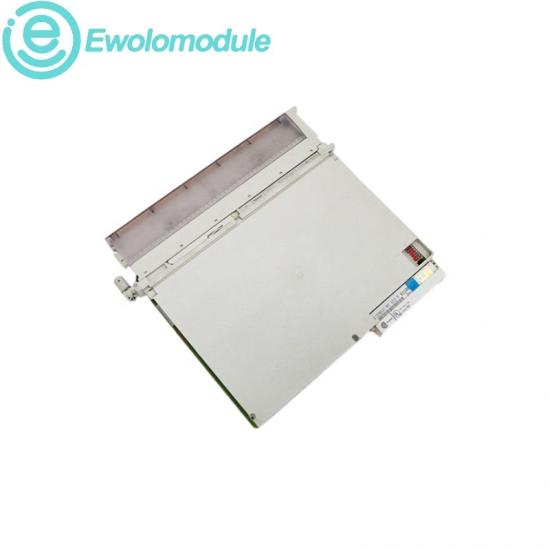

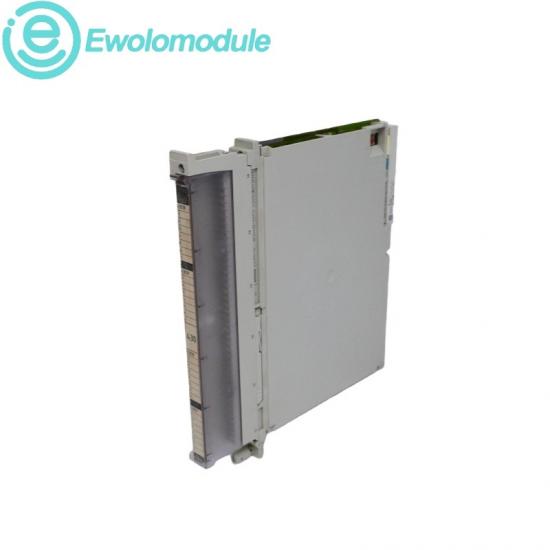

SIMATIC S5 Digital Input 420 Module

SIMATIC S5 / 420

Description: Acquires thirty-two 24 V DC field signals in compact SIMATIC S5 systems and supports documented migration planning to S7-400 I/O.

Tel : +86 17359287459Email : sales9@apterpower.com

SPECIFICATIONS / OFFICIAL ENGINEERING DATA

6ES5420-4UA14 FUNCTIONAL PROFILE

This SIMATIC S5 420 input module provides 32 non-isolated 24 V DC digital inputs in a compact design. Siemens migration documentation identifies an adapter path for transferring the field wiring to a corresponding S7-400 input module.

OFFICIAL TECHNICAL DATA

Article number

6ES5420-4UA14

Product type

KEY-PLUG XM-400 Layer 3 Routing

Compatible platform

SCALANCE XM-400

Storage medium

KEY-PLUG

Storage capacity

256 MiB

Layer 3 activation

Supported

Configuration storage

Supported

Device replacement support

Supported

Degree of protection

IP20

Lifecycle status

Phase-out since 01.10.2025

OPERATING ENVIRONMENT

Use within the environmental limits of the installed SIMATIC S5 station and control cabinet. Protect the 24 V DC field circuits from condensation, conductive contamination and uncontrolled transients.

INSTALLATION & UPGRADE

Seat the module in the documented S5 rack position with power removed and verify the non-isolated 24 V DC wiring. For migration, Siemens lists adapter 6EZ2041-8UG07-0EU36 with S7-400 module 6ES7421-1BL01-0AA0.

RECOMMAND

SAFETY & COMPLIANCE

The product is not RoHS-compliant. Isolate power before handling and verify common-potential wiring because the 32 input channels are specified as non-isolated.

PERFORMANCE EFFICIENCY

Thirty-two 24 V DC inputs provide high signal density in a compact S5 slot, while the documented S5-to-S7-400 adapter route helps preserve field wiring during modernization.
