Product Details

Official product profile

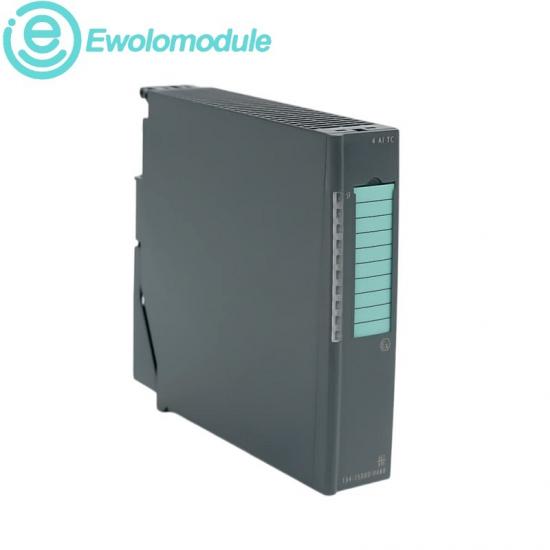

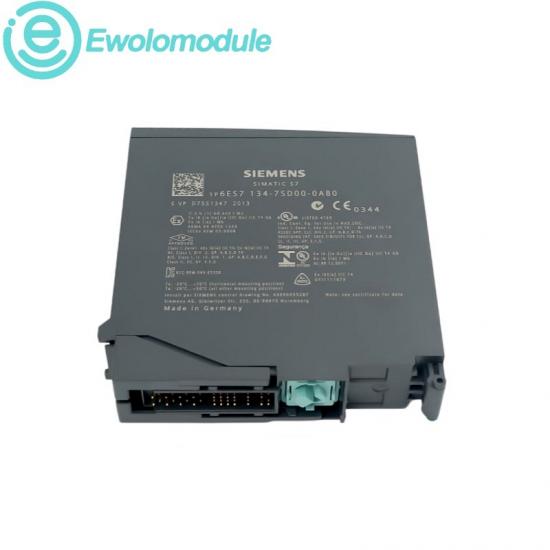

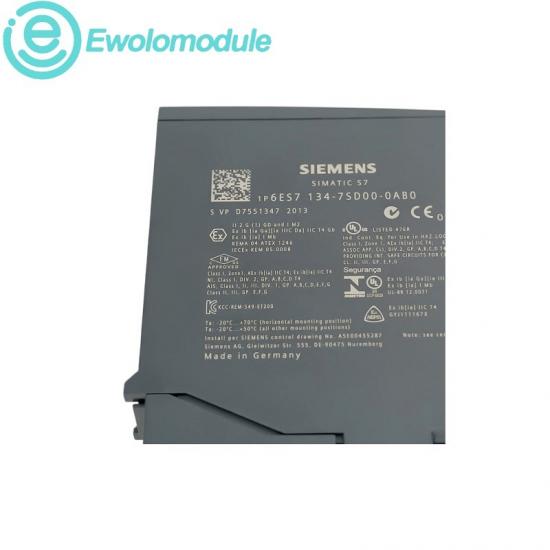

6ES7134-7SD00-0AB0

SIMATIC ET 200iSP 4 AI TC Analog Input Module

Description

Intrinsically safe four-channel thermocouple input module for SIMATIC ET 200iSP distributed I/O.

WarrantyOne year

AvailabilityIn stock

Related models on Ewolomodule

6ES7351-1AH01-0AE0 6ES7467-5FJ00-0AB0 6ES7315-2EG10-0AB0

Specifications / Intrinsically safe analog I/O

DATAET 200iSP 4 AI TC official engineering profile

Official technical data

Product type

4 AI TC

Analog inputs

Input function

Thermocouple / thermoelectric voltage

Voltage range

±80 mV

Thermocouple types

B, E, J, K, L, N, R, S, T, U

Resolution

15 bit plus sign

Reference junction

Internal compensation via TC sensor module

Galvanic separation

Functional, common mode 6.5 V DC

Diagnostics

Wire-break and configurable alarm

Protection class

IP30

Product positioning

Intrinsically safe temperature and millivolt input module for ET 200iSP process I/O stations.

Suffix meaning

Siemens identifies this configuration by the complete article number; no official segment-by-segment suffix key is published.

System relationship

Installs in a SIMATIC ET 200iSP terminal module and connects up to four thermocouples with the supplied TC sensor module.

Recommand / Application and replacement

Application overview

Process temperature

Thermocouple measurement in hazardous areas.

Chemical plants

Intrinsically safe distributed analog acquisition.

Oil and gas

Four-channel temperature monitoring.

Installation

Mount on the designated ET 200iSP terminal module, connect channels and the TC sensor module, then configure sensor types and diagnostics.

Upgrade path

Retain the exact Ex application, terminal assignment, thermocouple type and compensation method during replacement.
