Product Details

Official product profile

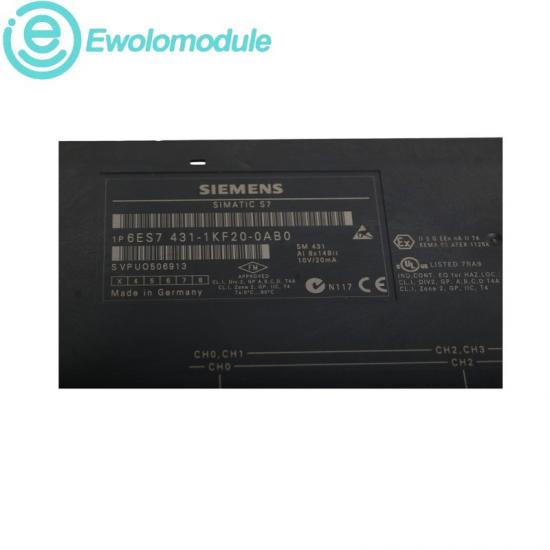

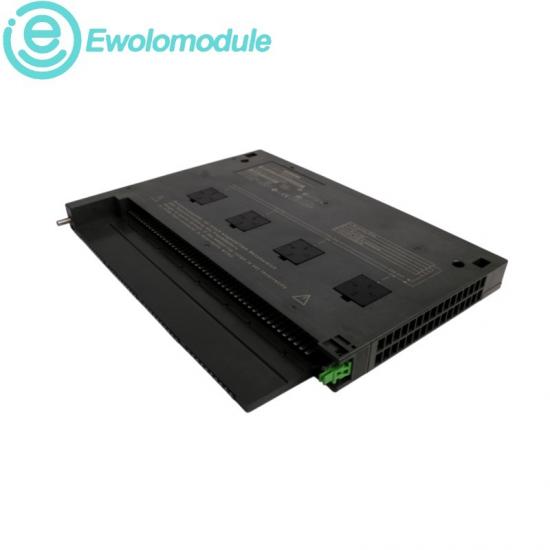

6ES7431-1KF20-0AB0

SIMATIC S7-400 SM 431 Analog Input Module

Description

Isolated eight-channel analog input module for voltage, current and resistance measurement in S7-400 systems.

WarrantyOne year

AvailabilityIn stock

Related models on Ewolomodule

6ES7351-1AH01-0AE0 6ES7467-5FJ00-0AB0 6ES7315-2EG10-0AB0

Specifications / S7-400 analog input

DATASM 431 official engineering profile

Official technical data

Product type

SM 431 analog input

Analog inputs

Resolution

14 bit including sign

Measurement types

Voltage, current and resistance

Module cycle time

0.416 ms

Basic conversion time

52 µs

Shielded cable length

200 m maximum

Diagnostics function

Channel isolation

To backplane bus and load voltage

Product family

SM 431

Product positioning

High-speed analog acquisition module for eight measurement channels in SIMATIC S7-400 stations.

Suffix meaning

Siemens identifies this configuration by the complete article number; no official segment-by-segment suffix key is published.

System relationship

Operates in SIMATIC S7-400 racks and accepts configured voltage, current or resistance input ranges through STEP 7.

Recommand / Application and replacement

Application overview

Process measurement

Analog transmitters and resistance signals.

Machine monitoring

Fast multi-channel data acquisition.

Utilities

Central S7-400 analog measurement.

Installation

Insert in the assigned S7-400 rack slot, connect shielded signal wiring and restore the configured measurement ranges.

Upgrade path

Preserve channel range selection, wiring and STEP 7 hardware configuration when replacing the phased-out SM 431 release.
