PRODUCT DETAILS

SIEMENS

ARTICLE NUMBER

6ES7134-7TD50-0AB0

Warranty: One year • Availability: In stock

OFFICIAL PRODUCT NAME

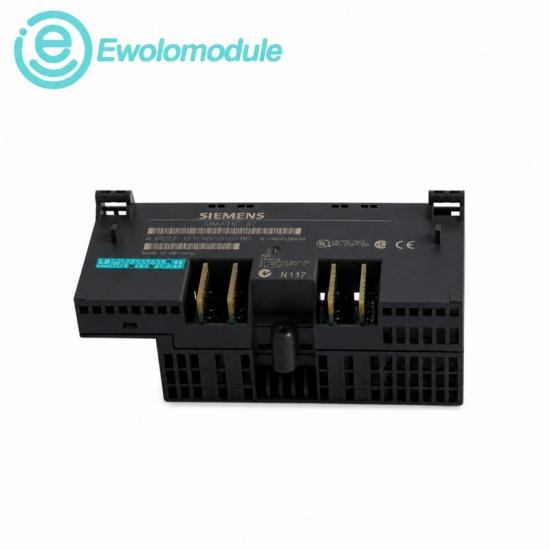

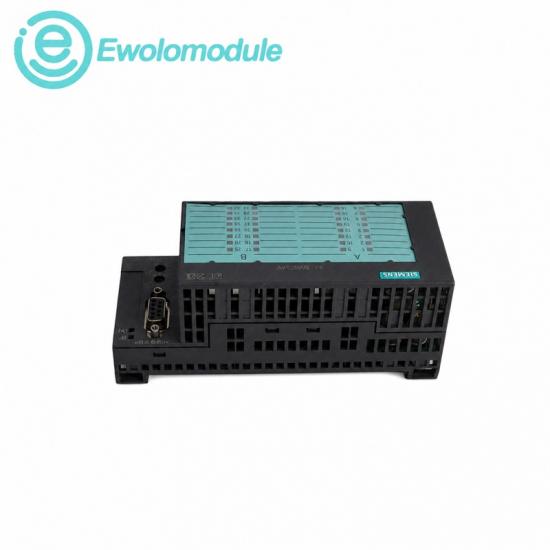

SIMATIC ET 200iSP 4AI 4-Wire HART Analog Input Module

Series: SIMATIC ET 200iSP / Analog Electronic Modules
Description: Four-channel intrinsically safe analog input module for 4-wire HART transmitters in ET 200iSP stations.

RELATED MODELS ON EWOLOMODULE
6GK1161-6AA01 6SL3210-1PE22-7AL0 6ES7313-5BF03-0AB0

SPECIFICATIONS / OFFICIAL ENGINEERING DATA

HART Analog Input Module engineering profile

The 4AI I 4WIRE HART electronic module acquires four current signals from externally powered HART transmitters and integrates their process and device data into an ET 200iSP distributed I/O station.

OFFICIAL TECHNICAL DATA

Article number

6ES7134-7TD50-0AB0

Product type

4AI I 4WIRE HART

Analog inputs

Transmitter connection

4-wire HART

HART protocol

Version 6.0

Supply range

20.4 to 28.8 V DC

Current consumption

27 mA typical

Power loss

0.4 W typical

Cycle time

120 ms maximum

Mounting

Front and rail mounting

DIAGNOSTIC PROTECTION

Intrinsic-safety approvals cover Ex ib applications, while input-current limits and configurable diagnostics support protected operation. Parameters can be changed during RUN for controlled maintenance.

PERFORMANCE EFFICIENCY

Four HART channels, a 30 ms basic conversion time and a maximum 120 ms all-channel cycle consolidate process measurement and device communication in one module.

RECOMMAND

INSTALLATION & UPGRADE

Insert the electronic module into the specified ET 200iSP terminal module on the rail, connect the externally powered 4-wire HART transmitters and load the verified station parameters.

APPLICATION SCENARIOS

Designed for hazardous-area pressure, flow, level and analytical measurement where HART diagnostics must be carried through distributed process I/O.
