01 · PRODUCT DETAILSEmail : sales9@apterpower.com

SIEMENS INDUSTRIAL AUTOMATION

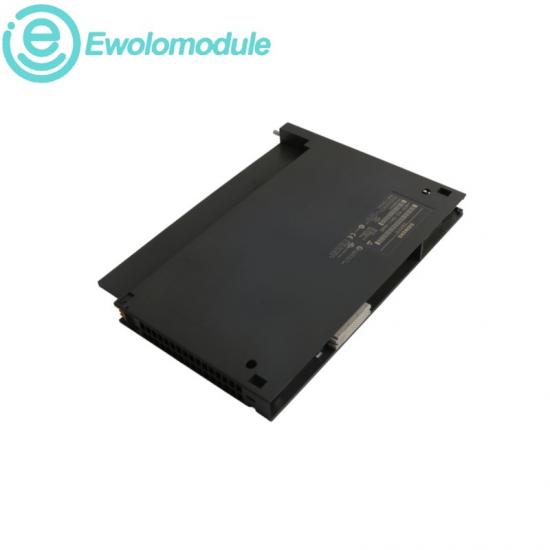

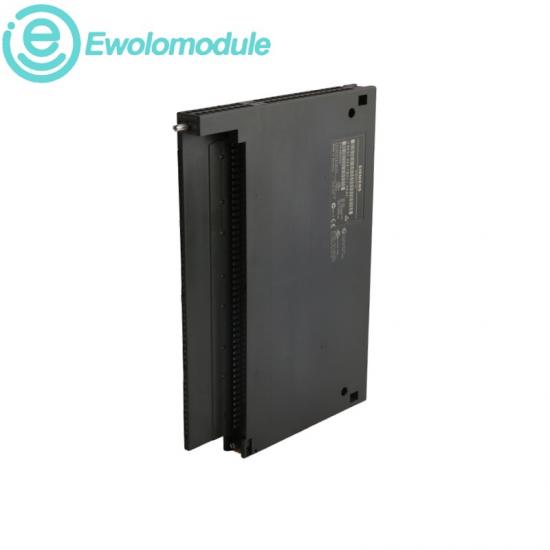

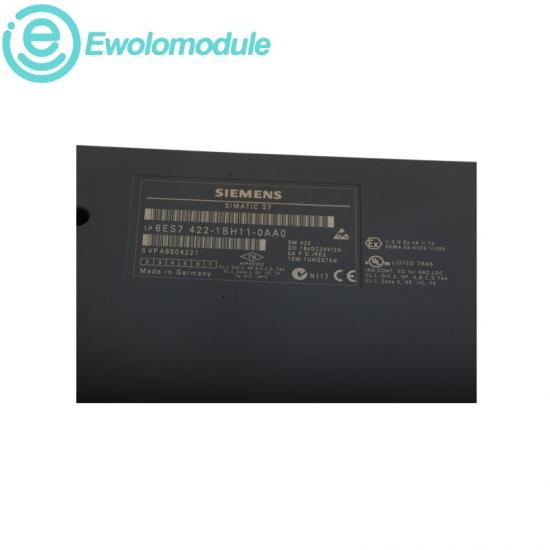

Siemens 6ES7422-1BH11-0AA0 S7-400 SM 422 Digital Output Module

A SIMATIC S7-400 isolated digital output module with sixteen 24 V DC channels.

CONTROL ROLE

High-density S7-400 output control

The SM 422 provides sixteen isolated digital outputs for an S7-400 station.

SeriesSIMATIC S7-400

ConditionNew Original

WarrantyOne year

AvailabilityIn stock

Siemens Products 6ES7231-5PA30-0XB0 6ES7288-2QT16-0AA0 6ES7332-5HD01-0AB0

02 · SPECIFICATIONSEmail : sales9@apterpower.com

Detailed product description

SM 422 DO 16x24 V DC/2 A

The SM 422 provides sixteen isolated digital outputs for an S7-400 station. Its 2 A channels are arranged in isolated groups and drive industrial actuators from a 24 V DC load supply.

ENGINEERING FOCUS

Sixteen isolated outputs

2 A switching capacity

Long field-cable support

Official technical data

Digital outputs

Rated voltage

24 V DC

Output current

2 A

Channel isolation

Yes

Isolation groups

8 channels per group

Backplane isolation

Yes

Shielded cable

1000 m max.

Unshielded cable

600 m max.

Safety & Compliance

Isolation test500 V DC

Potential difference75 V DC / 60 V AC

RoHS statusCompliant since 01 Mar 2008

DiagnosticsNo diagnostic function

Performance & Efficiency

Output density16 channels

Current per output2 A

Group structure2 isolated groups

Field cableUp to 1000 m shielded

Sixteen isolated outputs

2 A switching capacity

Long field-cable support

03 · RECOMMANDEmail : sales9@apterpower.com

Brand characteristics

Siemens industrial automation products combine documented engineering data, coordinated platform design and structured lifecycle support.

Documented platformOfficial order numbers and engineering data

Coordinated systemsMatched controller and I/O families

Lifecycle supportStructured maintenance and replacement paths

Application fields

A SIMATIC S7-400 isolated digital output module with sixteen 24 V DC channels.

Process plantsS7-400 actuator control

Large machinesValves, contactors and lamps

System serviceS7-400 output replacement

Installation & upgrade: Isolate power, verify the complete article number and compatible system configuration, then follow the applicable Siemens device manual before commissioning.
