PRODUCT DETAILS

SIEMENS

ARTICLE NUMBER

6GK7343-1EX20-0XE0

Warranty: One year • Availability: In stock

OFFICIAL PRODUCT NAME

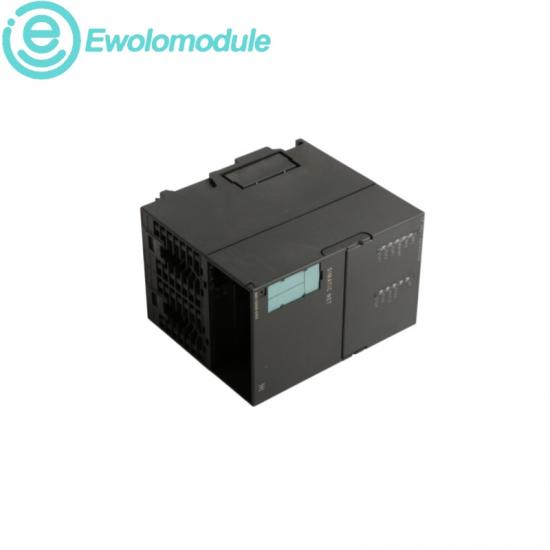

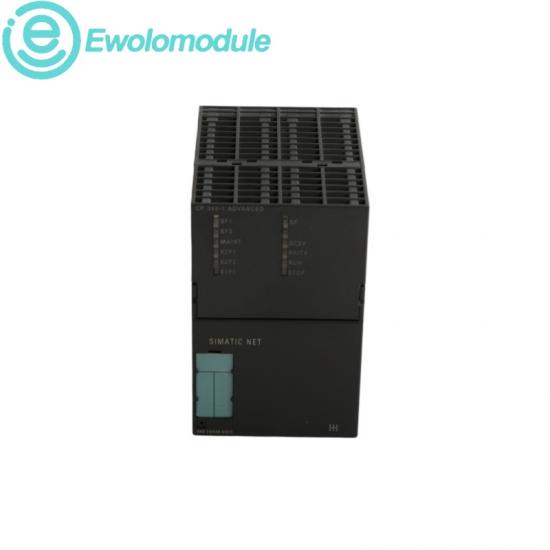

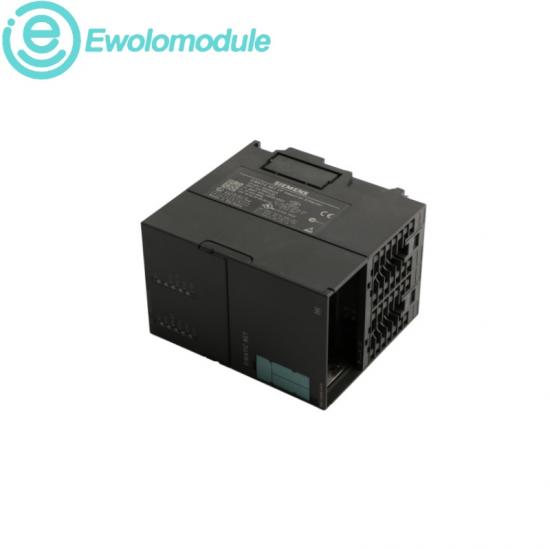

SIMATIC NET CP 343-1 Industrial Ethernet Communications Processor

Series: SIMATIC NET / CP 343-1
Description: Industrial Ethernet communications processor for network integration of SIMATIC S7-300 stations.

RELATED MODELS ON EWOLOMODULE
6GK1161-6AA01 6SL3210-1PE22-7AL0 6ES7313-5BF03-0AB0

SPECIFICATIONS / OFFICIAL ENGINEERING DATA

CP 343-1 Industrial Ethernet engineering profile

The CP 343-1 links a SIMATIC S7-300 automation station to Industrial Ethernet and supports controller, engineering and data-exchange services through the configured network interface.

OFFICIAL TECHNICAL DATA

Article number

6GK7343-1EX20-0XE0

Product family

SIMATIC NET CP 343-1

Host system

SIMATIC S7-300

Network

Industrial Ethernet

Interface

RJ45

Transmission rate

10 / 100 Mbit/s

Transport services

ISO / TCP / UDP

S7 communication

Supported

Open communication

SEND / RECEIVE

Engineering

STEP 7 / NCM S7

DIAGNOSTIC PROTECTION

Communication diagnostics, status indicators and STEP 7 diagnostic functions assist with network fault localization and controlled maintenance.

PERFORMANCE EFFICIENCY

Direct Ethernet connectivity enables coordinated data exchange between S7-300 stations, operator systems and higher-level industrial networks.

RECOMMAND

INSTALLATION & UPGRADE

Mount in an approved S7-300 rack, connect the Industrial Ethernet interface and transfer the documented STEP 7 or NCM S7 configuration; verify addressing before replacement.

APPLICATION SCENARIOS

Industrial automation networks, machine cells, production data collection, controller communication and plant-wide Ethernet integration.
